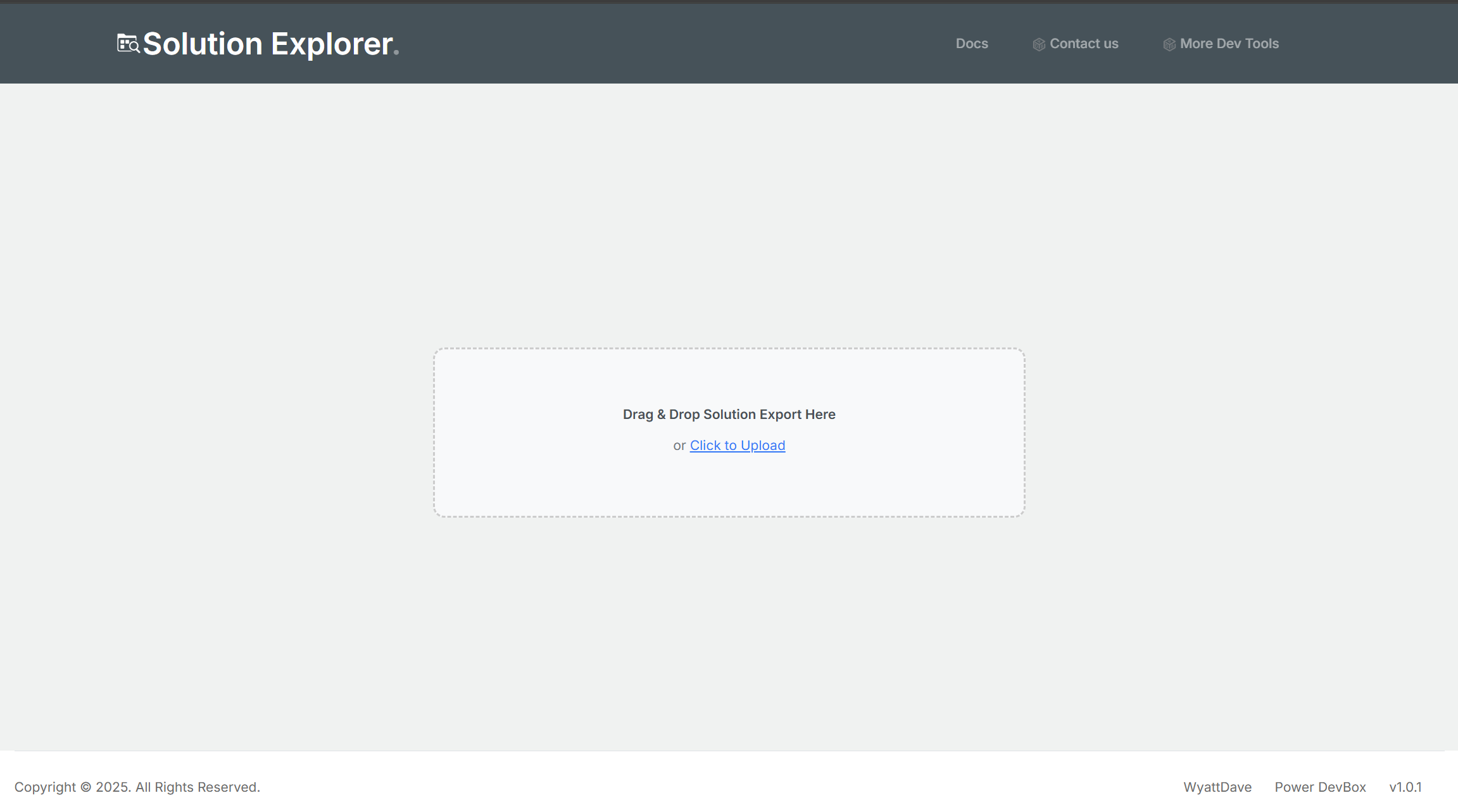

# Solution Explorer Solution Explorer gies a visual representation of the key components of a Power Platform solution {% embed url="" %} 1. How to load 2. Views 3. Components 4. Links 5. Filters 6. Export *** ### 1. How to load To load drag the solution onto the drag and drop rectangle or click to upload and select the export.

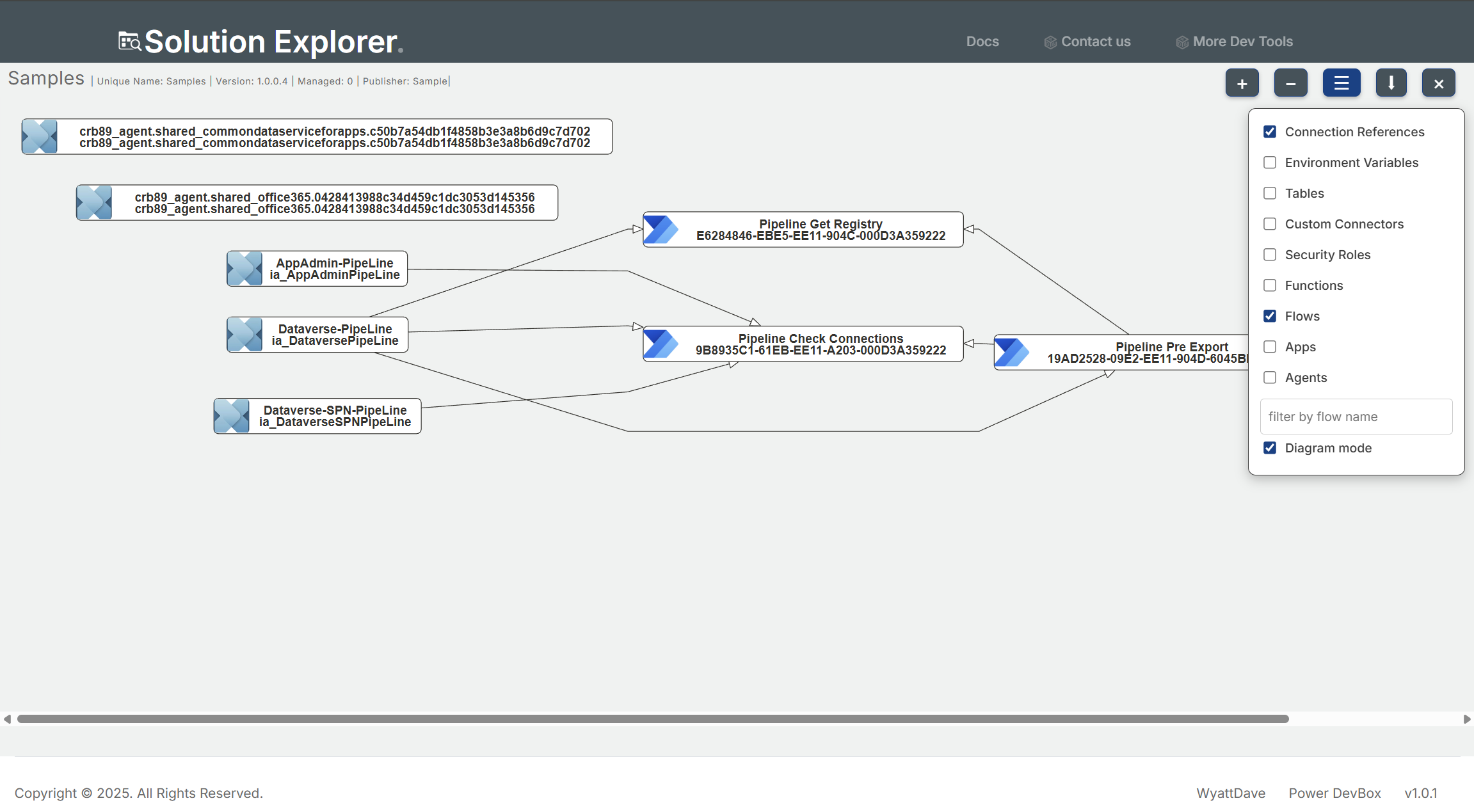

The solution will load as a linked diagram, with components referenced linked.

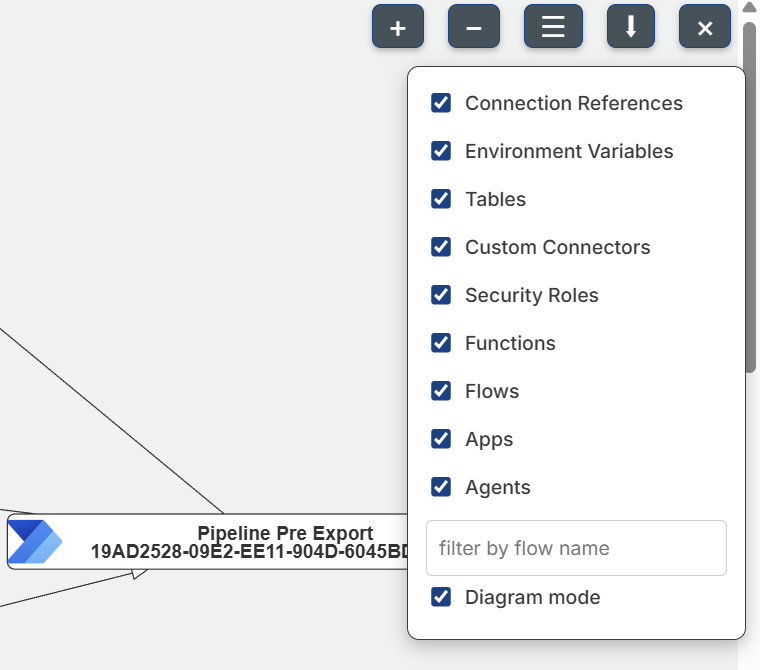

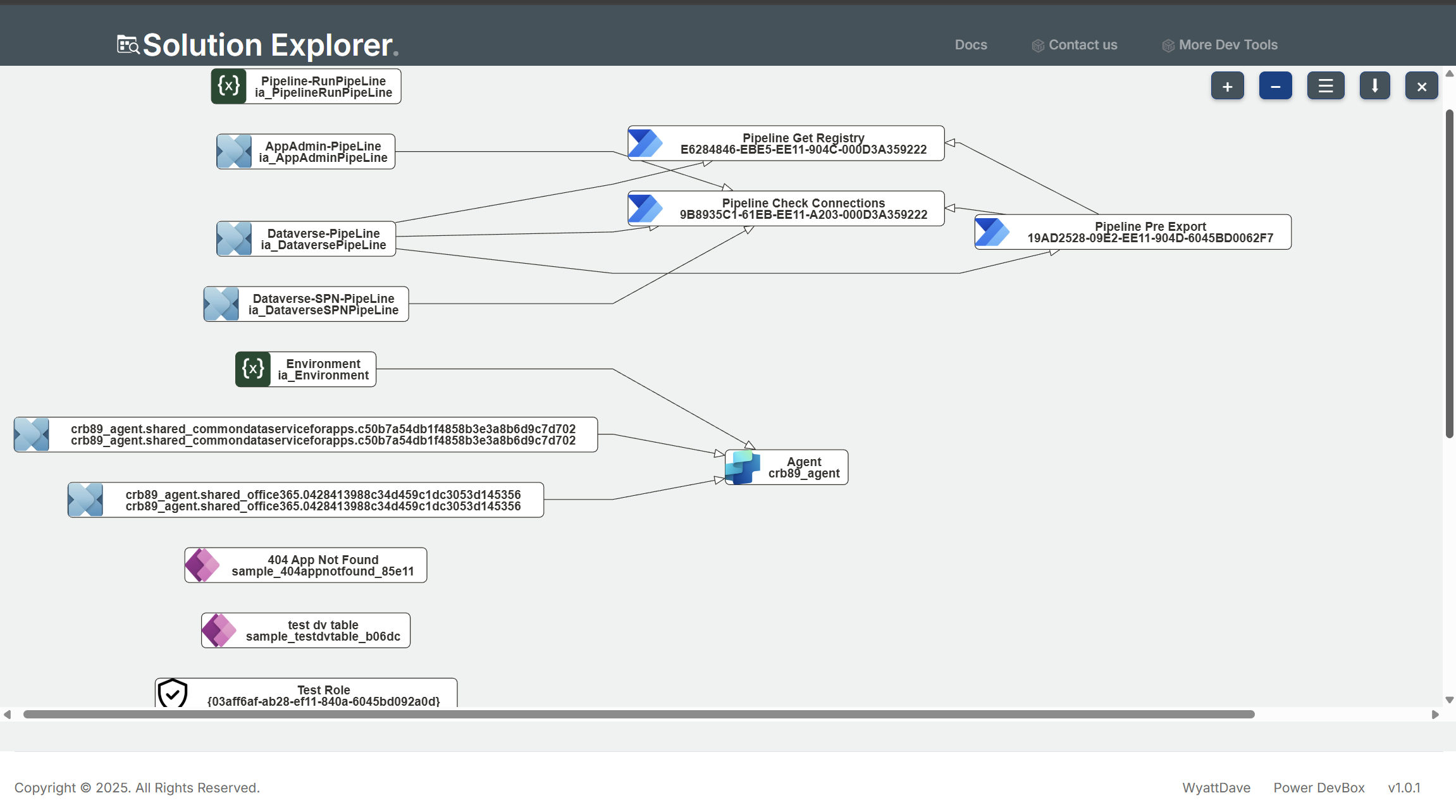

In the example above you can see what connection references are used in each flow, what flows are called as child flows, and which environment variable is used in a agent. ### 2. Views There are 2 views to show components that can be set by clicking the hamburger menu and toggling diagram mode.

#### Diagram Mode Shows components and links that represent the use of other components

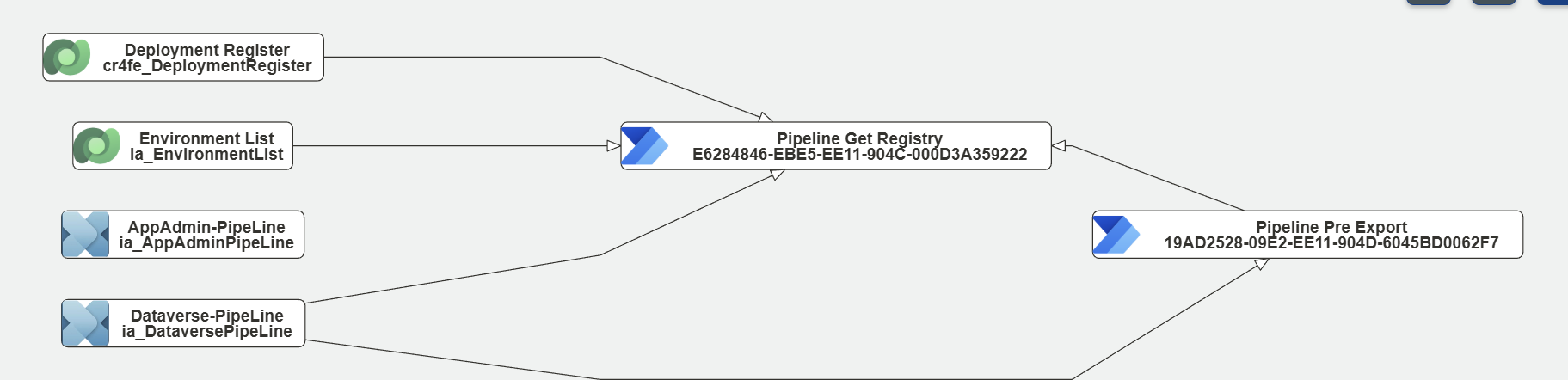

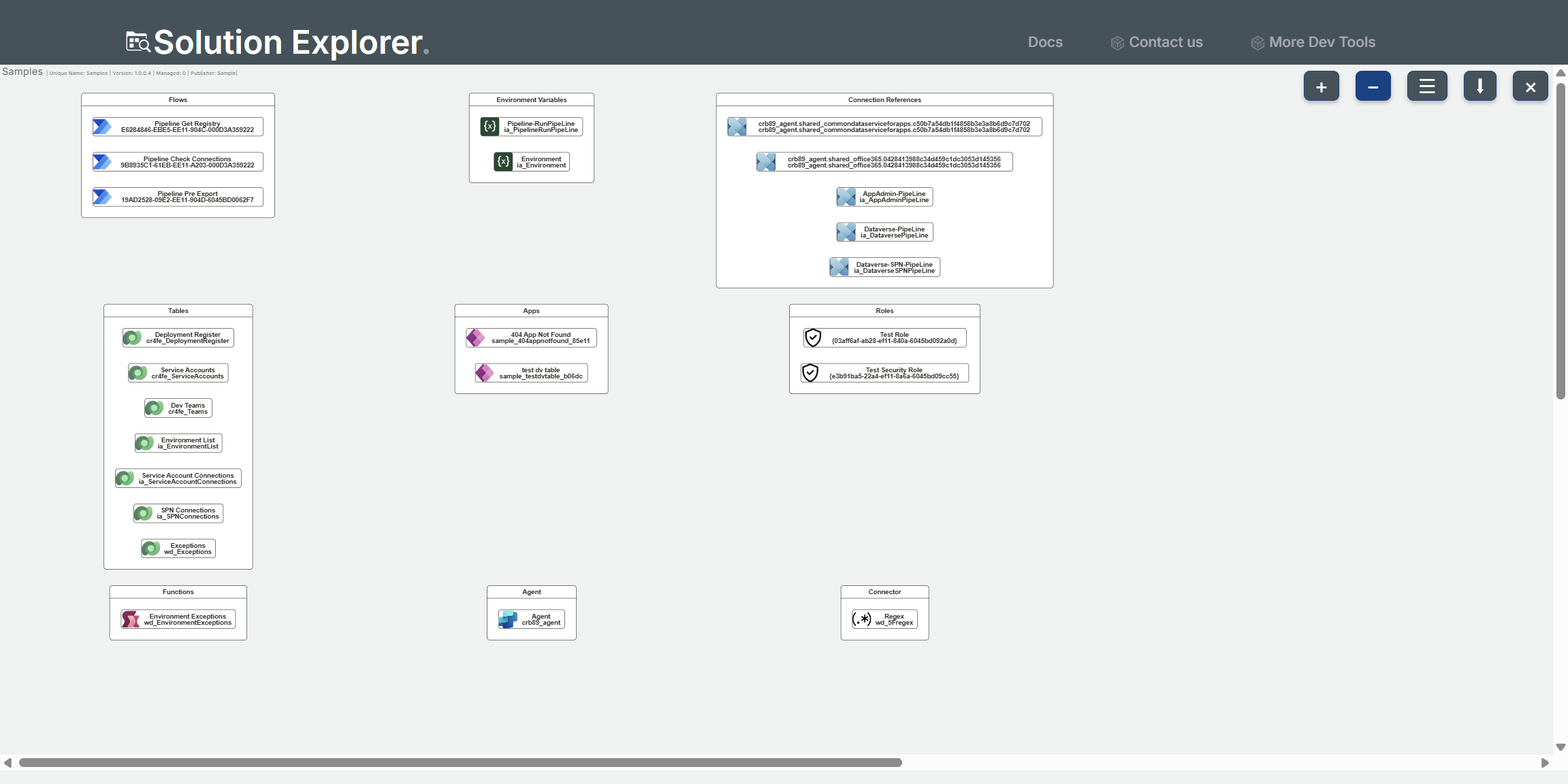

The above shows that the Get Registry flow is called by the Pre Export flow and uses the Environment list table and Dataverse-PipeLine connection reference. #### List Mode List mode groups all components by type and lists them.

### 3. Components The following components are supported:

Icon	Component	Relationships
	Flows	Connection Reference, Environment Variables, Apps, Agents, Tables, Functions
	Canvas Apps	Connection Reference, Environment Variables, Tables, Functions
	Model Driven Apps	Connection Reference, Environment Variables, Tables
	Copilot Studio Agent	Connection Reference, Environment Variables, Flows, Tables
	Connection References	Flows, Canvas Apps, Model Driven Apps, Copilot Studio Agent, Custom Connectors
	Environment Variable	Flows, Canvas Apps, Model Driven Apps, Copilot Studio Agent
	Custom Connector (shows connector icon)	Connection References
	Dataverse Functions	Flows, Canvas Apps
	Security Role
	Ai Builder Models	Flows, Canvas Apps
	Dataflows	Flows
	Web Resources
	Missing Dependencies (off by default)	Every Component

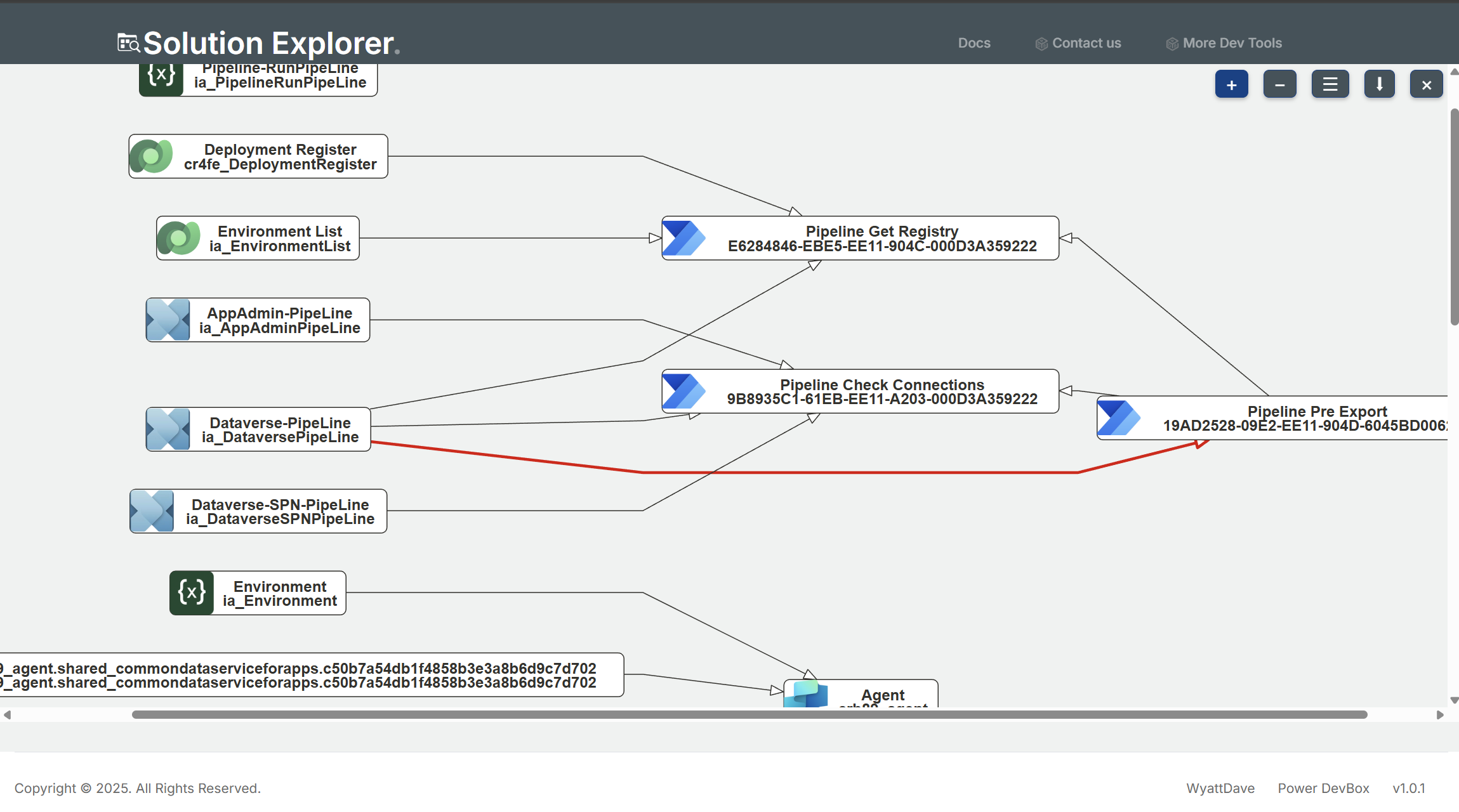

### 4. Links To improve visibility of relationships link lines can be clicked to highlight them in red.

Click again to remove the highlighting. Multiple lines can be highlighted at once. ### 5. Filters Solution Explorer includes 2 types of filters, component and flow name.

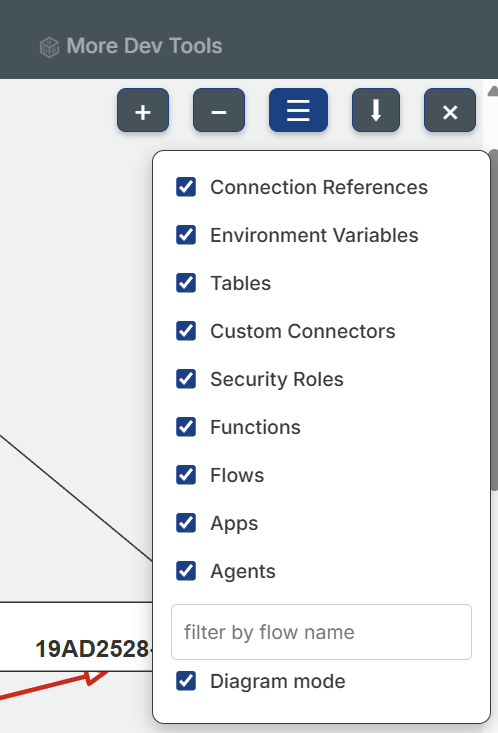

#### Component Remove the checkbox against a component will remove it from the diagram.

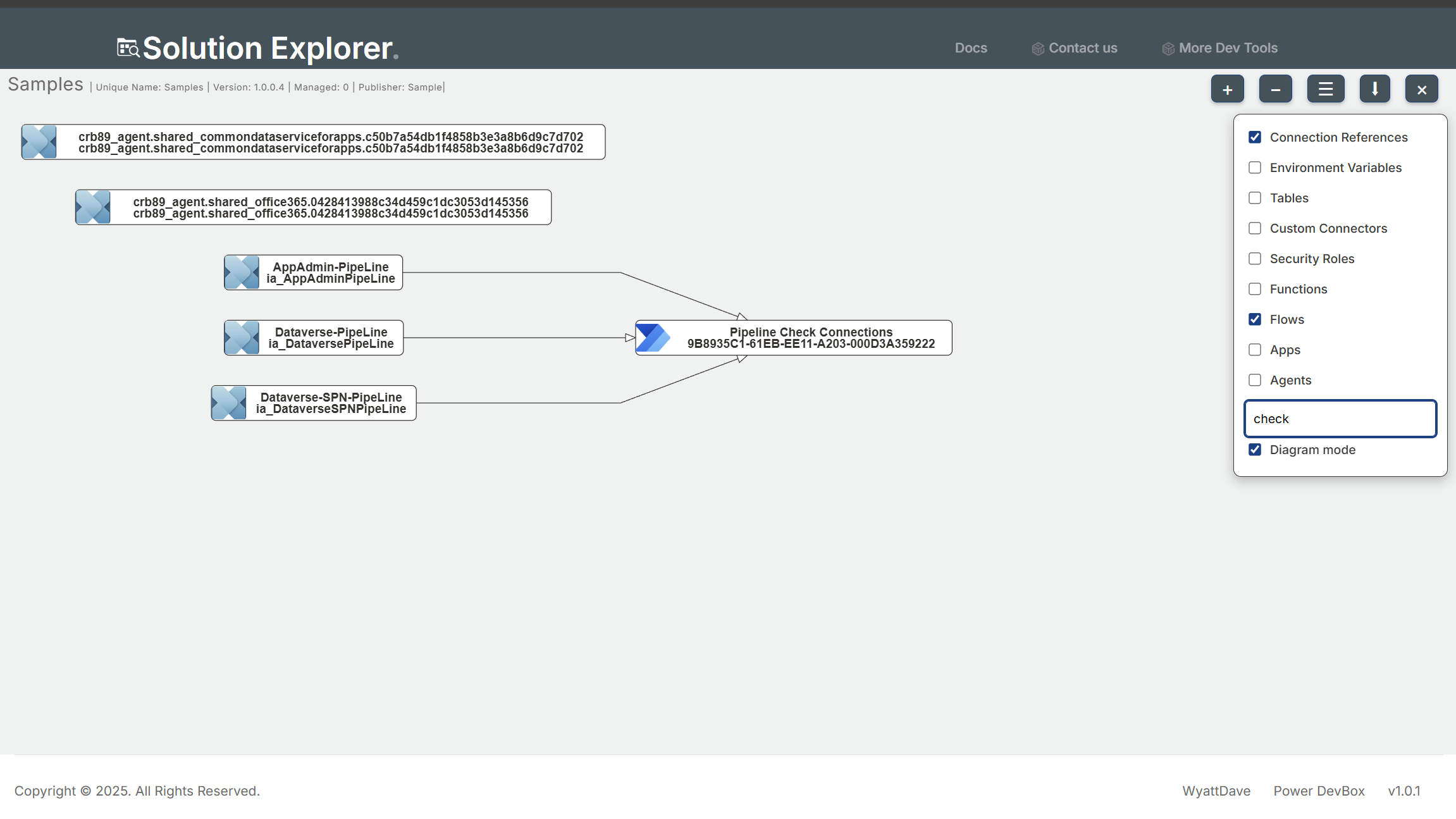

#### Flow The flows can be filtered by contains word or doesnt contain word. Adding a word will filter flows so that only flows with the matching text will show in the diagram

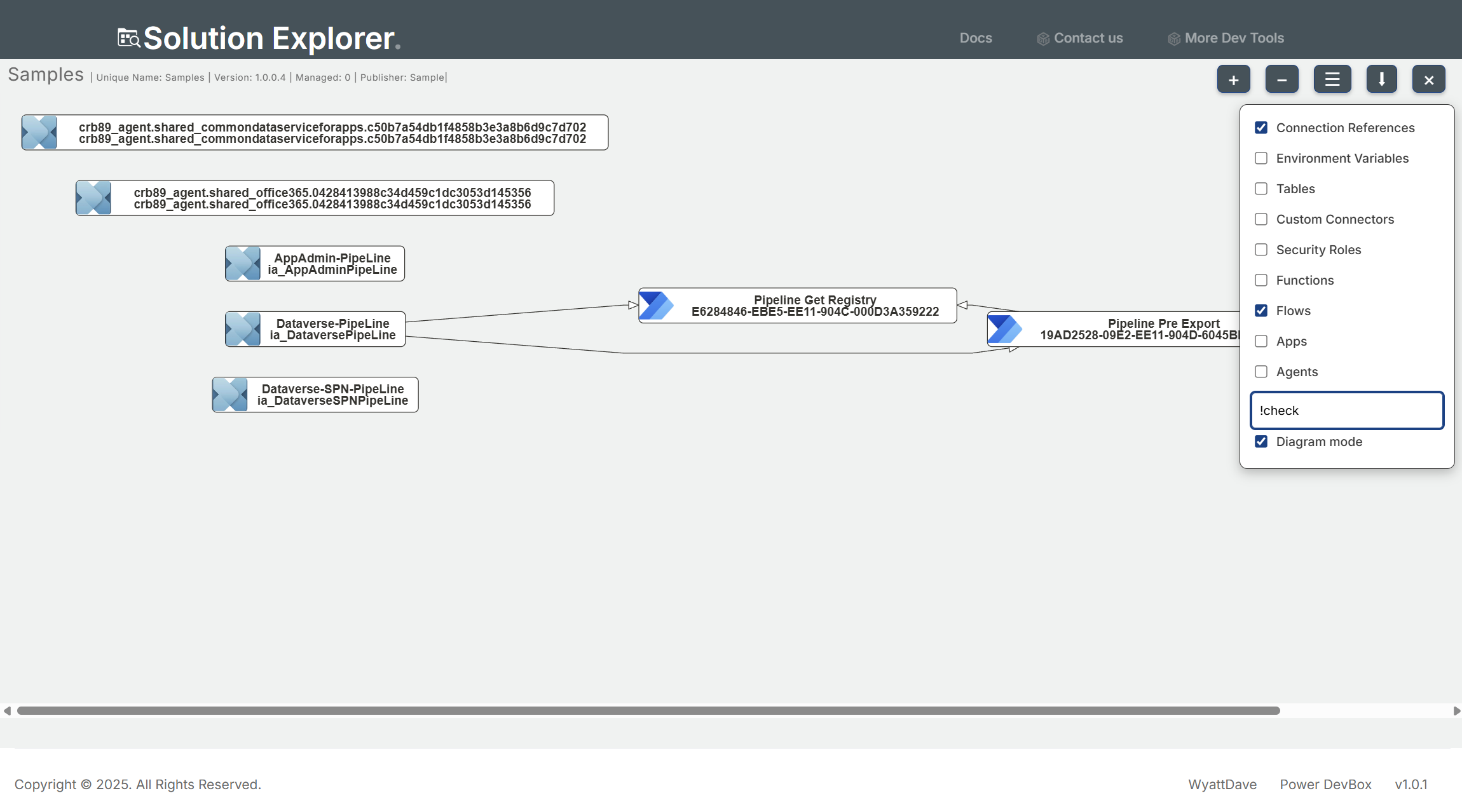

A not contains filter is also availble, with the ! prefix. So in this case it will only show flows that do not contain the text in the display name.

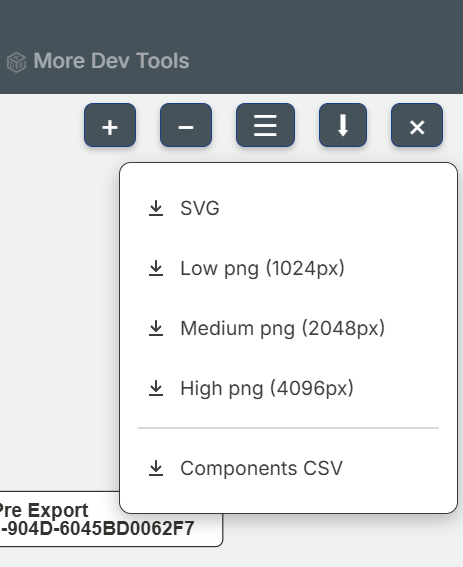

### 6. Export There are 3 types of exports. * SVG * PNG * CSV

SVG exports the diagram as a SVG, this is a vector image so can be scaled (zoomed in/out) without losing resolution (SVGs are not compatible with some image software, but are with web browsers). PNG are standard image exports, you can download in 3 sizes, Low (1024 pixels wide), Medium (2048 pixels wide), and High (4094 pixels wide). CSV creates a table of all the components by name, id(or unique name) and type.
