This tool helps plot benchmark results, and compare them with past results.
Just drag and drop benchmark results json files, to visualize & compare data.

FNM manages versions of Node.js installed.

After you install fnm and add it to your $PATH, you should be able to do the following.

➜  plot-benchmarks git:(viz-benchmarks) ✗ fnm use
Using Node v18.16.0

Note: fnm use might prompt you to install the version of Node.js being used.

Now, you are ready to install all the dependencies.

# Installs the necessary dependencies.
npm install

# Compiles the code, and hot-deploys code to the local dev server.
npm run-script dev

VITE v4.3.9  ready in 168 ms

➜  Local:   http://localhost:5173/
➜  Network: use --host to expose
➜  press h to show help

Now navigate to the URL listed in the output.

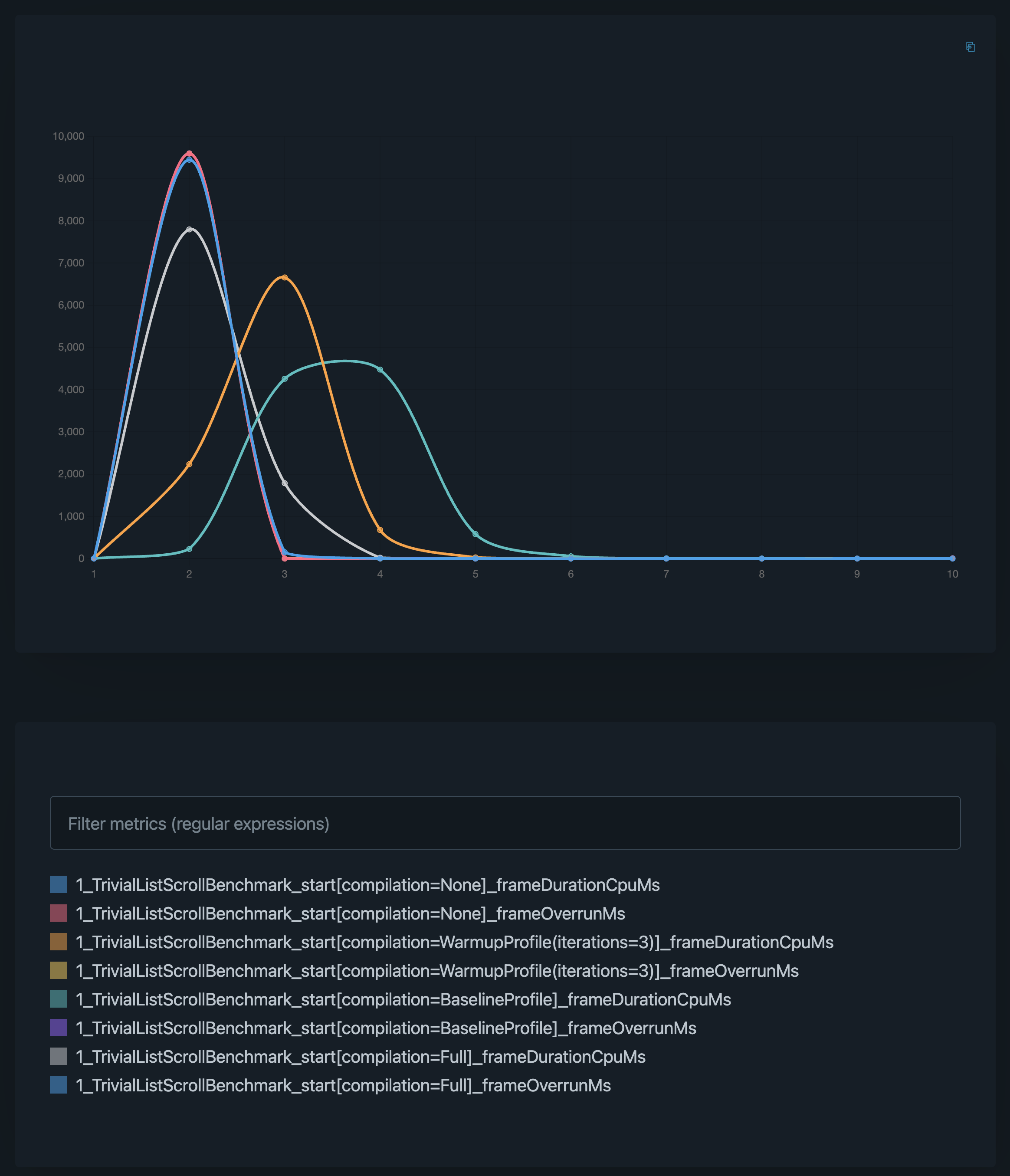

• Drag and drop benchmark results (*.json) files into the page.
• Double clicking the items on the legend, toggles the visibility of the dataset in the chart.
• You can also filter metrics to plot.

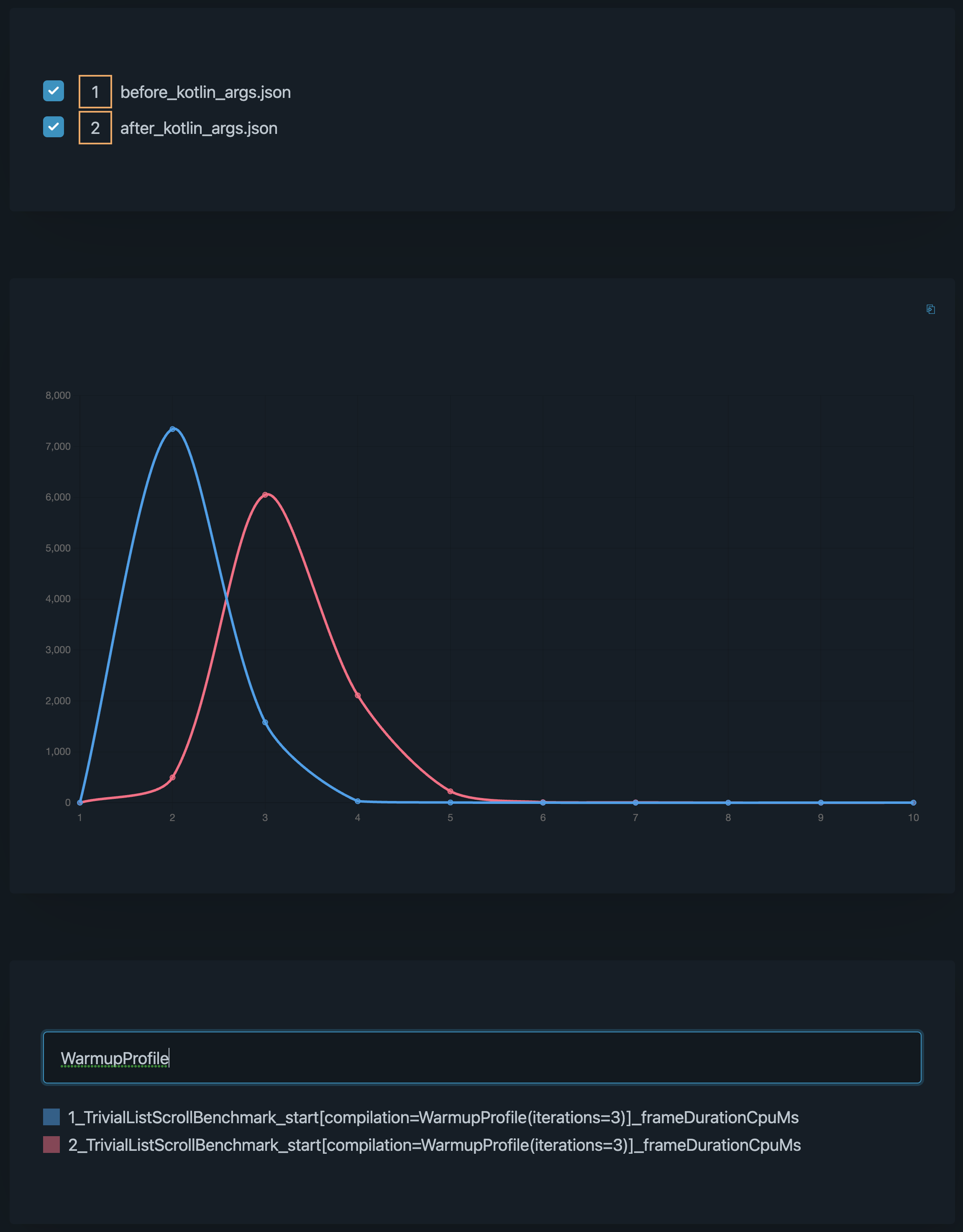

• To compare benchmark runs, just load both results into the page, and select the ones you want to compare.

Have fun !
