A Typescript library for parsing Python 3 and doing basic program analysis, like forming control-flow graphs and def-use chains.

To parse Python 3 code, pass a string containing the code to the parse method.

const code = [
    'x, y = 0, 0',
    'while x < 10:',
    '   y += x * 2',
    '   x += 1',
    'print(y)'
];
const tree = parse(code.join('\n'));

This method returns a tree of SyntaxNode objects, discriminated with a type field. The library also provides a function walk for pre-order tree traversal. With no arguments, it returns a list of the syntax nodes in the tree.

walk(tree).map(node => node.type)
// produces ["module", "assign", "literal", "literal", "name", "name", "while", "binop", …]

Optionally, walk takes a visitor object with methods onEnterNode (for pre-order traversal) and onExitNode (for post-order traversal).

Syntax nodes can be turned back into code with the printNode function, which produces a string. There is no guarantee of round-tripping. That is printNode(parse(code)) could be syntactically different than code, but will be semantically the same. For example, there may be extra parentheses around expressions, when compared with the original code. The printNode function is primarily for debugging.

A control flow graph organizes a parse tree into a graph where the nodes are "basic blocks" (sequences of statements that run together) and the edges reflect the order of block execution.

const cfg = new ControlFlowGraph(tree);

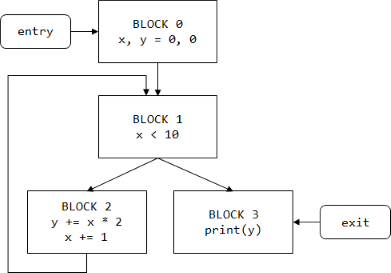

cfg.blocks is an array of the blocks in the control flow graph, with cfg.entry pointing to the entry block and cfg.exit pointing to the exit block. The control flow graph for the parse tree above looks like this.

Each block has a list of its statements.

printNode(cfg.blocks[0].statements[0])

prints x, y = 0, 0.

The methods cfg.getSuccessors and cfg.getPredecessors allow the edges to be followed forward or backward.

const cond = cfg.getSuccessors(cfg.entry)[0];
printNode(cond)

prints x < 10.

The library also provides basic def-use program analysis, namely, tracking where the values assigned to variables are read. For example, the 0 assigned to x in the entry block is read in the conditional x < 10, in the assignments y = x * 2 and x += 1.

const analyzer = new DataflowAnalyzer();
const flows = analyzer.analyze(cfg).flows;
for (let flow of flows.items)
    console.log(printNode(flow.fromNode) +
        " -----> " + printNode(flow.toNode))

prints

x, y = 0, 0 -----> x < 10
x, y = 0, 0 -----> print(y)
x, y = 0, 0 -----> y = x * 2
x += 1 -----> x < 10
y = x * 2 -----> print(y)
x += 1 -----> y = x * 2
