Description

DScrollPanel is a VGUI Element similar to DPanel however it has a vertical scrollbar docked to the right which can be used to put more content in a smaller area. DScrollPanels are essentially DPanels with the Scroll Bar.

This can be used to replace the DPanelList with DPanelList:EnableVerticalScrollbar and get similar functionality as well as using a non-deprecated element.

If you would like to paint or edit the elements of the scrollbar use DScrollPanel:GetVBar. If you want to see if the scrollbar is visible then use the VBar.Enabled variable on the scrollbar's VBar.

Panel:DockPadding will not have an effect on children of this panel. Use the function on DScrollPanel:GetCanvas instead.

View source

Parent

Derives methods, etc not listed on this page from DPanel.

Implements

Implements or overrides the following hooks/methods. If you want to override these, you probably want to call the original function too.

Methods

DScrollPanel:AddItem( Panel pnl )
Parents the passed panel to the DScrollPanel's canvas.
Panel DScrollPanel:GetCanvas()
Returns the canvas ( The panel all child panels are parented to ) of the DScrollPanel.
number DScrollPanel:GetPadding()
Deprecated: We advise against using this. It may be changed or removed in a future update. Gets the DScrollPanels padding, set by DScrollPanel:SetPadding.
Panel DScrollPanel:GetVBar()
Returns the vertical scroll bar of the panel.
number DScrollPanel:InnerWidth()
Return the width of the DScrollPanel's canvas.
DScrollPanel:PerformLayoutInternal()
Internal: This is used internally - although you're able to use it you probably shouldn't. Used internally to rebuild the panel's children positioning. You should use Panel:InvalidateLayout instead.
DScrollPanel:Rebuild()
Internal: This is used internally - although you're able to use it you probably shouldn't. Used internally to rebuild the panel's children positioning. You should use Panel:InvalidateLayout instead.
DScrollPanel:ScrollToChild( Panel panel )
Scrolls to the given child
DScrollPanel:SetCanvas( Panel canvas )
Internal: This is used internally - although you're able to use it you probably shouldn't. Sets the canvas of the DScrollPanel.
DScrollPanel:SetPadding( number padding )
Deprecated: We advise against using this. It may be changed or removed in a future update. Sets the DScrollPanel's padding. This function appears to be unused.

Example

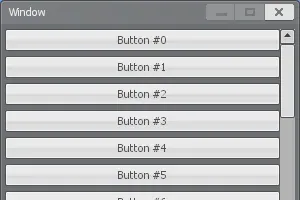

Creates a DScrollPanel and adds 100 DButtons to it.

local frame = vgui.Create( "DFrame" ) frame:SetSize( 500, 500 ) frame:Center() frame:MakePopup() local DScrollPanel = vgui.Create( "DScrollPanel", frame ) DScrollPanel:Dock( FILL ) for i=0, 100 do local DButton = DScrollPanel:Add( "DButton" ) DButton:SetText( "Button #" .. i ) DButton:Dock( TOP ) DButton:DockMargin( 0, 0, 0, 5 ) end
Output:
